SZL series coal-fired hot water boiler

2019-10-10 Font size

INTRODUCTION

SZL series vertical dual drums chain grate water tube hot water boiler, adopts quick fitting and assembly structure. The 4-6t/h boiler is of quick fitting tube structure, exit shop after completely assembled, the boiler of 6-35t/h is composed of 2 main components. The upper assembled component is the boiler proper heat absorbing part, and the lower assembled component is of combustion equipment. The former part of the boiler proper is arranged a membrane wall, the upper part of it is connected to boiler cylinder, and its lower part is connected to collective chest, so as to form a combustion room and absorb the radiated heat from the furnace. Its rear part is arranged with dense convection tubes between upper and lower boiler cylinders. The high temperature smog after combustion shall stand for twice returning flushing transversely to the heat accepting surfaces, and shall be introduced to coal saver singly arranged, and flow into duster and exhausted from chimney in the end.

Technical advantages

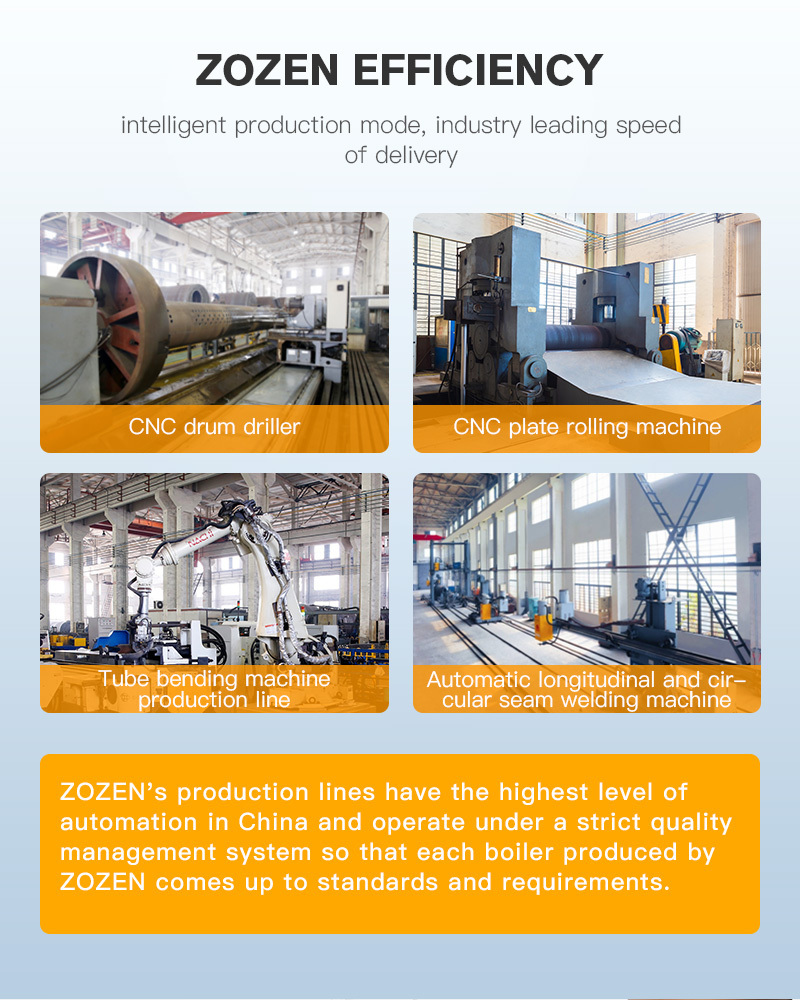

CNC manufacturing technology
  • The key processing technologies such as steel plate blanking, circling, drum and tube plate drilling adopt advanced CNC machining to reduce the assembly stress and prolong the service life of the boiler.

  • Steel tube cutting, thread tube pressing and convection tube processing all adopt advanced CNC technology.

  • Automatic production line.

Advanced welding process
  • The welding of important parts like the vertical and circular seams of the boiler, the tubes, the inside of boiler and the flange are all adopted automated welding processes such as submerged arc welding or gas shielded welding to ensure the welding quality. All the vertical and circular seams will be done 100% radiographic inspection.

  • Tube flange weld adopts robot welding.

  • The chain grate panel, front and rear smoke chamber panel adopts CNC plasma cutting machine to cut orderly and beautifully.

Unique structural design
  • According to different capacity, different numbers of independent air bins are arranged from front to back of the grate.

  • The user can reasonably adjust the air distribution according to different combustion conditions to ensure that the fuel is fully burnt.

  • Secondary air is input to disturb fuel gas in the furnace, to ensure the fuel is burnt totally. The independent secondary fan makes it easy to control and adjust the air volume and air pressure.

  • Feeds evenly feeding and avoid flashback.

Low NOx emissions
  • Graded air supply and special furnace arch structure decrease the NOx emissions to 100mg/m³.

  • Different biomass raw materials are analyzed by numerical simulations, thermal efficiency is more than 90%.

Zozen Boioer Co., Ltd. is one of the most powerful industrial boiler manufacturing enterprise in ChinaSZL series coal-fired hot water boiler is energy conservation, low emissions, and thermal efficiency is higher than 80%, high level of automationThe structure of SZL series coal-fired hot water boilerThe advantage of SZL series coal-fired hot water boilerZozen Boiler is largest industrial boiler manufacturer, annual production scale exceeds 2000 sets of boilersZozen Boiler has the most automatical industrial boiler production line in China and a strict quality management system to ensure the qualityThe unique customized steam system solution of Zozen Boiler enables customers to achieve the maximum energy saving and lowest emission
